Name: 256*192 Resolution Android Thermal Imaging Module Mini Handheld Infrared Camera for Mobile Phone
Brand: Beijing Lsj Technology Development Co., Ltd.
SKU: Mini4k
Availability: InStock

Home Products Best Selling

256*192 Resolution Android Thermal Imaging Module Mini Handheld Infrared Camera for Mobile Phone

Product Details:

Place of Origin:	Beijing, China
Brand Name:	LSJ
Model Number:	Mini4k

Contact Now

Detailed Product Description

Display Resolution:	384x288	Field Of View:	50° X 38°
Thermal Color Palettes:	5 Color Palettes	Thermal Image Pixel:	256x192
Image Frequency:	50Hz	Thermal Sensitivity:	＜60mk
Visible Image Solution:	12μm	Spectral Range:	8 To 14μm
Frame Rate:	25Hz	Compatible:	For Android Phones
Warranty:	ONE Year	Material:	ABS

Products Description

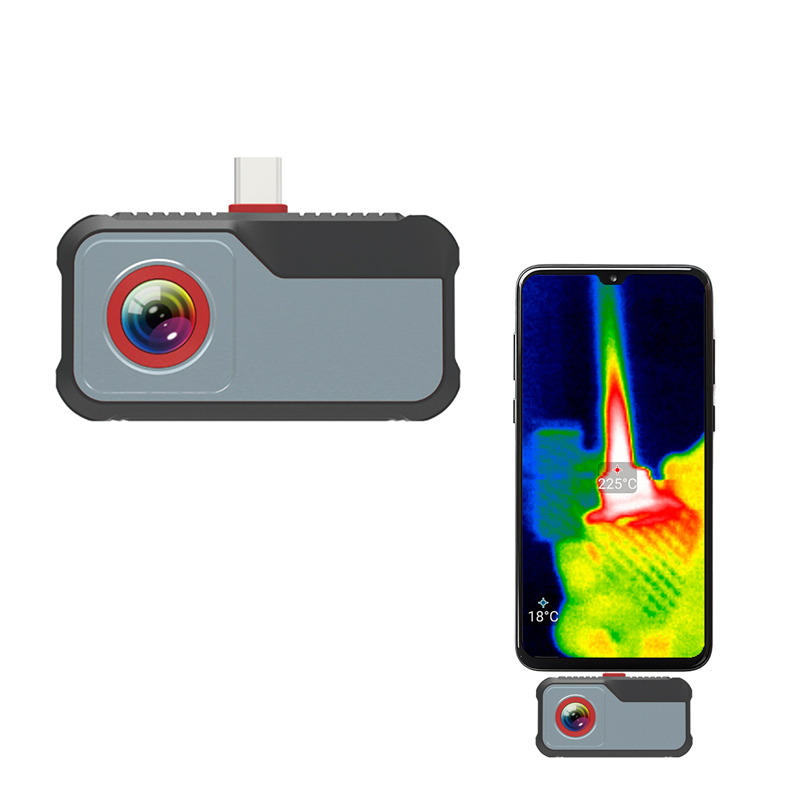

LSJ’s Mini4k thermal mobile camera is a portable camera that turns your Android smartphone/tablet or Windows laptop into a powerful thermal imager.
Simply download the accompanying app, slot the Mini4k in your device’s USB-C port, and unleash thermal technology that formally only belonged to special forces.
Perfect for home inspectors, HVAC technicians, electricians, automotive technicians, and even farmers looking to protect crops and livestock.

Specifications

Specifications

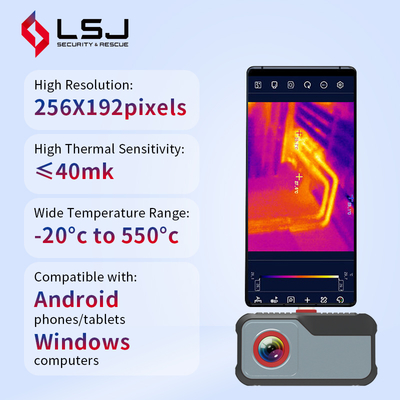

Spectral Range	8 to 14μm
Resolution	256×192
Pixel Size	12μm
Frame Rate	25Hz
NETD	＜40mK @25°C, F#1.0, 25Hz
Object Temperature Range	-20 to 150°C (-4°F to 302°F),150°C to 550°C (302°F to 1022°F)
Accuracy	Maximum Temperature Variance of 2℃. right down to the 0.1ºC
Operating Systems	Compatible with Android Phone / Tablet & Windows Laptops
Size	714214mm (2.801.650.55 inch)
Weight	30g
Service	Support OEM/ODM Services,custom logo,color,packaging.Feel Free to contact us!
