Name: LSJ-S1200 Fire TIC Thermal Imager Smoke-Penetrating Detection for Firefighters
Brand: Beijing Lsj Technology Development Co., Ltd.
SKU: S1200
Availability: InStock

Home Products 384*288 IR Resolution

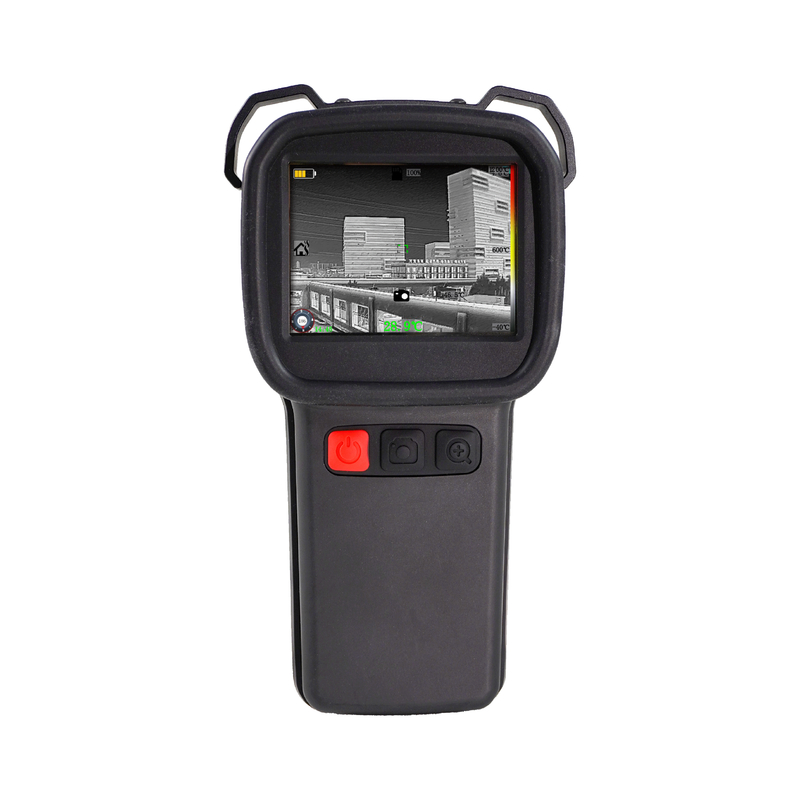

LSJ-S1200 Fire TIC Thermal Imager Smoke-Penetrating Detection for Firefighters

Product Details:

Place of Origin:	Beijing, China
Brand Name:	LSJ
Model Number:	S1200

Contact Now

Detailed Product Description

Display Resolution:	384x288	Field Of View:	50° X 38°
Thermal Color Palettes:	8 Color Palettes	Thermal Image Pixel:	256x192
Image Frequency:	50Hz	Thermal Sensitivity:	＜60mk
Sample:	Yes	Infrared Detector Resolution:	384*288,Uncooled
Zoom:	2x, 4x	Shipping:	Support Door-to-door Delivery
Videos And Images:	Support

Products Description

Since 2010, LSJ has been dedicated to producing emergency search and rescue equipment and firefighting thermal imaging cameras. Our products are highly favored by firefighting, defense, civil defense, and rescue departments. We invest heavily in research and development, continuously upgrading our products to ensure the safety of rescue personnel and enhance rescue efficiency.
Our firefighting infrared thermal imaging cameras can withstand temperatures up to 1500°C and offer infrared resolutions of 256x192, 384x288, and 640x512. Additionally, they support WiFi and laser ranging features, meeting diverse user needs and providing multiple options.

If you're interested in our products, please CONTACT US right away.

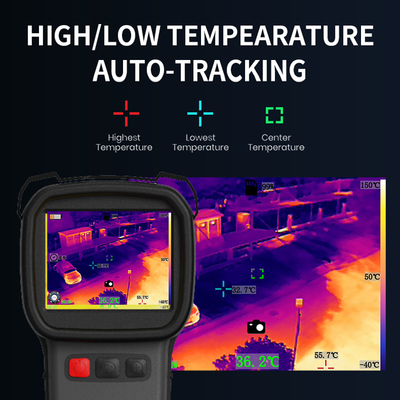

Maximum temperature, minimum temperature, and center point temperature display functions

In actual firefighting scenarios, the functions of maximum temperature, minimum temperature, and center point temperature display on an infrared thermal imaging camera include:
1. Maximum Temperature Display: Helps firefighters quickly locate the fire source or potential danger zones for prompt
firefighting actions.
2. Minimum Temperature Display: Used to identify possible abnormal cold spots, such as leaks or other non-fire-related risk areas.
3. Center Point Temperature: Provides the specific temperature of a reference point to help assess changes in ambient temperature and assist in decision-making and actions.

These functions together enhance firefighters' ability to make judgments and take action efficiently in complex environments, ensuring more effective responses.

2x and 4x digital zoom function:

The LSJ-S1200 supports 2x and 4x digital zoom. Additionally, LSJ also offers thermal imaging cameras with laser rangefinding capabilities, reaching distances up to 800 meters. If you have any needs, feel free to contact us directly.

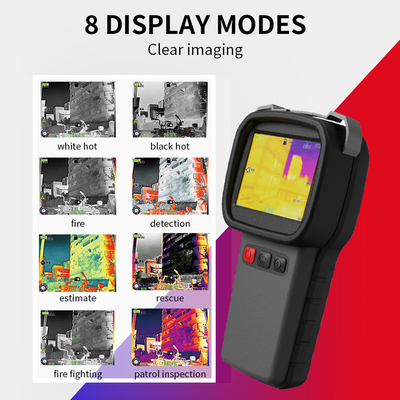

The LSJ-S1200 thermal imaging camera has 10 modes that play different roles in firefighting and rescue operations:
1. White Hot Mode:
* Displays hot areas in white, allowing quick identification of heat sources.
2. Black Hot Mode:
* Displays hot areas in black, useful for identifying heat sources in bright environments.
3. Firefighting Mode:
* Specifically designed to identify flames and high-temperature areas, helping locate the source of the fire.
4. Fire Mode:
* Highlights extreme high-temperature areas, aiding in assessing fire intensity and spread direction.
5. Search and Rescue Mode:
* Optimized for detecting body heat, making it easier to locate trapped individuals in smoke.
6. Heat Detection Mode:
* Accentuates temperature differences, helping to identify potential overheating equipment or fire hazards.
7. Inspection Mode:
* Used for routine inspections to identify abnormal temperatures in equipment or wiring.
8. Assessment Mode:
* Evaluates the impact of fire on structures, assisting in developing firefighting strategies.
9. Monitoring Mode:
* Monitors temperature changes in an area over time to prevent fire reignition.
10. Verification Mode:
* Verifies that a fire is completely extinguished, ensuring site safety.

These modes use different temperature displays and color adjustments to help firefighters operate more effectively in various complex environments.

If the 10 image modes of the LSJ-S1200 are not needed, you can directly set it to firefighting mode, adjusting to options like White Hot, Firefighting, Fire, and Search and Rescue. The diverse functions of the S-1200 meet the needs of different firefighting scenarios. Additionally, we can customize features according to your needs.

QC at LSJ:

Our firefighting infrared thermal imaging cameras undergo rigorous quality control to ensure reliability and durability in extreme conditions. We conduct a series of stringent tests, including:
* Water Immersion Test: The device is submerged for 30 minutes to ensure top-tier waterproof performance.
* Drop Test: It withstands a 2-meter drop to verify impact resistance.
* Protection Rating: Achieves an IP67 rating, ensuring dust and water resistance for harsh environments.
* High-Temperature Test: Our cameras operate effectively in extreme heat, withstanding temperatures up to 1200°C.

These tests guarantee that our products not only meet industry standards but also provide dependable support for firefighters in challenging situations.

Product Paramenters

More specific technical files, please contact us by Alibaba.com

Product Model	LSJ-S1200
IR Resolution	384288; 256192(optional)
Dynamic temperature range	-20℃～1200℃
Language	Support English, Spanish, Russian, German, French, Portuguese.
Image mode	Black hot, white hot, fire, personnel search and rescue, missing persons, fire mode and other 8 modes
Storage	Support
