Name: High Resolution Infrared Thermal Lmaging Camera for Temperature Measurement, Wind Speed, Distance Measurement
Brand: Beijing Lsj Technology Development Co., Ltd.
SKU: MF-500
Availability: InStock

Home Products 384*288 IR Resolution

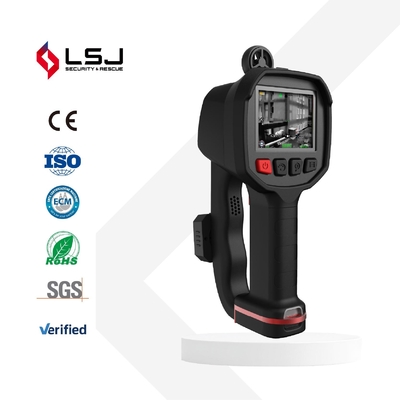

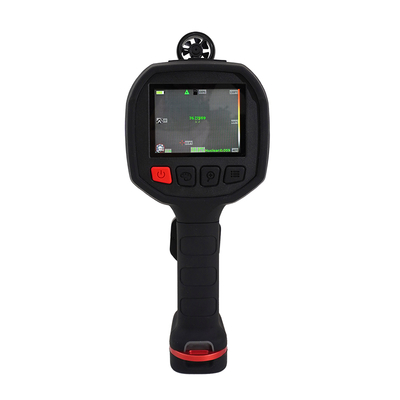

High Resolution Infrared Thermal Lmaging Camera for Temperature Measurement, Wind Speed, Distance Measurement

Product Details:

Place of Origin:	Beijing, China
Brand Name:	LSJ
Model Number:	MF-500

Contact Now

Detailed Product Description

Display Resolution:	640x480	Field Of View:	50° X 63°
Thermal Color Palettes:	4 Color Palettes	Thermal Image Pixel:	1280x960
Image Frequency:	50Hz	Thermal Sensitivity:	＜60mk
Display Screen Size:	3.5-inch TFT LCD; 640*480 Pixels	Video&Image:	Support
Zoom:	Support	Laser Point:	Support
Laser Rangefinder:	≥700m	Dealer Price:	Contact Us
Additional Functions:	Support To Detect: Gas, Nuclear Radiation, Voltage Leakage; Weather	Infrared Resolution:	384*288
Brand:	LSJ

Products Description

MF-500 Firefighting thermal imager camera specifications

If you are seeking firefighting thermal camera for fire and safety department, please don't hesitate to contact us for dealer price by alibaba.com or email to info@lsj-te.com.

Product Model	LSJ-MF-500
Display	3.5-Inch TFT LCD; 640*480 pixels
IR Resolution	384×288 pixels; or 640×512 pixels
Spectral Range	7.5～14μm
Image Frequency	60Hz
Dynamic Temperature Test Range	-40℃～650℃/1200℃,Automatic range switching
Image Mode	Basic fire-fighting mode Black-and-white fire-fighting mode Search and rescue mode Fire mode Heat detection mode
Battery	Explosion-proof design. removable rechargeable battery
Wireless Transmission	WIFI
Storage Capacity	30000 images
Encapsulation	IP68.
Zoom	2x; 4x
Laser rangefinder	Support
Additional Functions	Voltage leak detection Nuclear radiation detection Gas detection Meteorological detection
Features	Waterproof and impact resistant, high-temperature resistant

MF-500 firefighter thermal imager camera is designed for simplicity and durability. It delivers superior image performance and is built to withstand drops and extreme temperatures. Find the seat of the fire, direct primary search crews, and effectively attack the fire with enhanced clarity and detailed colorization.

It allows firefighters to see detail in the hottest and coolest regions of the scene at the same time without freezing and switching modes.

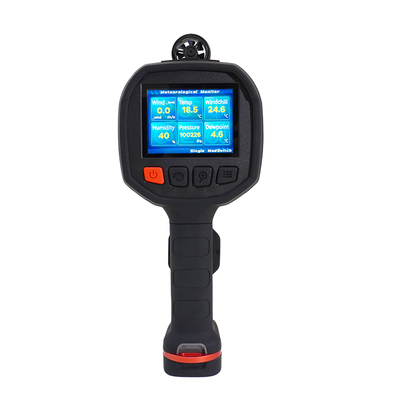

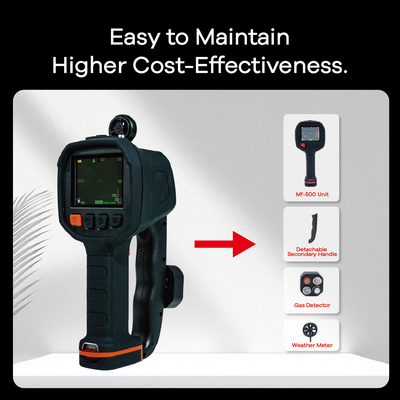

MF500 is a multifunctional modular design infrared thermal imager for firefighting. The device integrates infrared thermal imaging, visible light, electronic compass directional function, laser indication, voltage leakage detection, laser ranging, wind speed, wind direction, temperature and humidity, and other meteorological data measurements. It also includes toxic gas detection and nuclear radiation detection functions.

All these functions are integrated into a single device, with the detection modes switchable with one key. It supports multi-function simultaneous split-screen viewing.

Providing voice alerts for gas, leakage, and other dangers is a crucial feature of LSJ's firefighting infrared thermal imaging cameras. This function offers several advantages for firefighters and command centers:
1. Real-time Alerts: Voice alerts enable immediate awareness of hazardous situations, enhancing response speed and accuracy for firefighters and command centers.
2. Increased Vigilance: Voice alerts trigger a stronger sense of urgency during emergencies, aiding firefighters in prompt reactions and necessary actions.
3. Alleviated Workload: Voice alerts reduce the need for firefighters to constantly monitor device screens, allowing them to focus more on actual firefighting and rescue tasks.
4. Enhanced Efficiency: Voice alerts enable firefighters to quickly grasp the current danger situation, facilitating more
efficient coordination of actions and ensuring team safety.

These advantages contribute to boosting firefighters' operational efficiency and safety.

Laser Point: The laser pointing function allows for the precise marking of hazardous targets and entry points, facilitating coordinated rescue efforts among team members.

Laser Rangefinder: The ranging module accurately measures the straight-line distance to targets, providing crucial distance data for effective firefighting and rescue operations.

Moreover, the laser ranging functionality boasts an impressive range capability, extending beyond 700 meters. This extended range ensures that firefighting personnel can accurately assess distances even in challenging or expansive environments, enhancing their operational efficiency and safety during critical missions.

WiFi Image Transmission

With the WiFi feature, the device can transmit real-time images captured from the first-person perspective to the command center, enabling personnel at the command center to remotely monitor and assess the on-site situation.

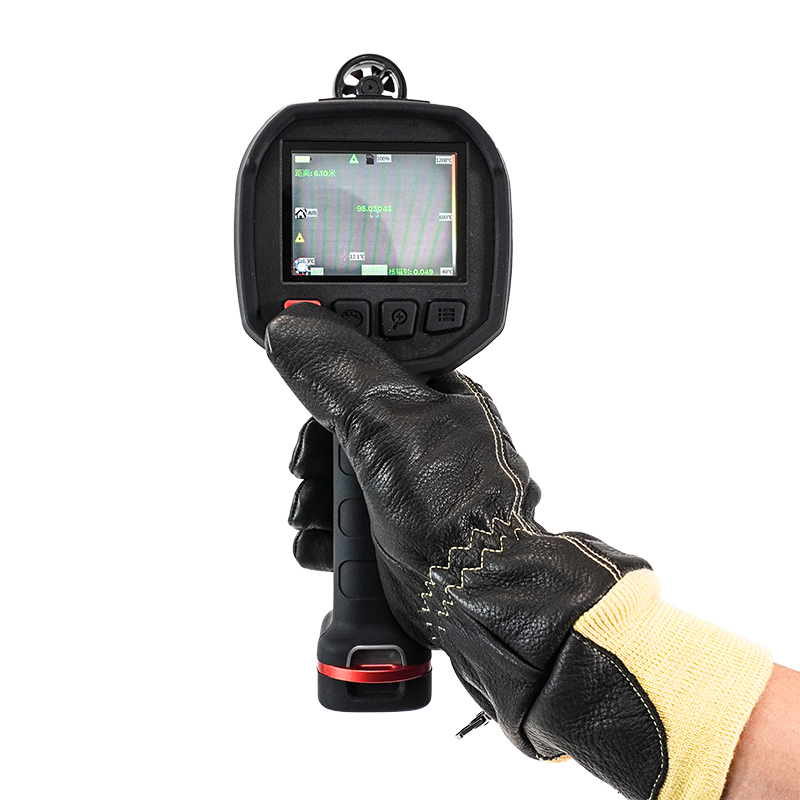

Oversized Buttons

The device features oversized buttons that allow for normal operation even when firefighters wear gloves, helping to prevent accidental errors.

The MF-500 thermal imaging cameras for firefighters is not only suitable for fire and safety services, but also versatile for industries such as chemical plants due to its nuclear radiation and gas detection modules. Additionally, the firefighting infrared thermal imager can also be used for earthquake search and rescue missions to help locate survivors.

If you are seeking firefighting thermal camera for fire and safety department, please don't hesitate to contact us for dealer
price by alibaba.com or email to info@lsj-te.com.

Quality Inspection

Our firefighting infrared thermal imaging cameras undergo rigorous quality control to ensure reliability and durability in extreme conditions. We conduct a series of stringent tests, including:
* Water Immersion Test: The device is submerged for 30 minutes to ensure top-tier waterproof performance.
* Drop Test: It withstands a 2-meter drop to verify impact resistance.
* Protection Rating: Achieves an IP67 rating, ensuring dust and water resistance for harsh environments.
* High-Temperature Test: Our cameras operate effectively in extreme heat, withstanding temperatures up to 1200°C.

These tests guarantee that our products not only meet industry standards but also provide dependable support for firefighters in challenging situations.
