Name: High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate
Brand: Beijing Lsj Technology Development Co., Ltd.
SKU: E320
Availability: InStock

Home Products Best Selling

High Resolution Portable Industrial IR Thermal Imager Camera 256*192 Infrared Imaging Handheld and Accurate

Product Details:

Place of Origin:	Beijing, China
Brand Name:	LSJ
Model Number:	E320

Contact Now

Detailed Product Description

Display Resolution:	384x288	Field Of View:	50° X 38°
Thermal Color Palettes:	5 Color Palettes	Thermal Image Pixel:	256x192
Image Frequency:	50Hz	Thermal Sensitivity:	＜60mk
Display:	2.8-inch TFT; 640*480 Pixels	Frame Rate:	25Hz
Field Of View (FoV):	56°x 42°/3.2mm	Focal Length:	3.2mm
Video/Picture:	Support	Hot Spot Track:	Support
Automatic Alarm:	Support	Applications:	Water Leak Detect; Electricity Inspection; Building Inspection

Product Paramenters

Model	LSJ-E310

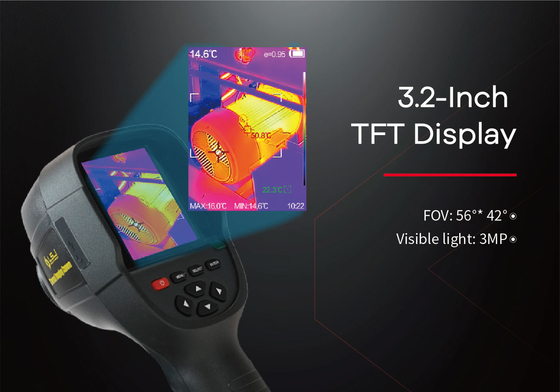

Displayscreen	3.2"full angle TFT displayscreen

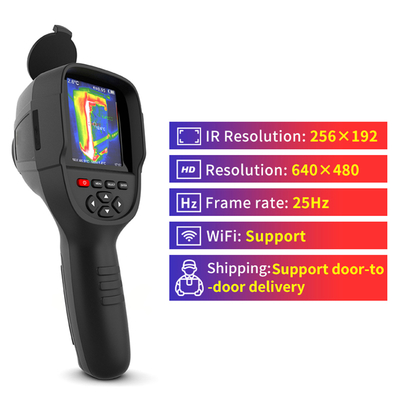

Infraredimage resolution	256×192
LCD resolution	640×480
Field angle/focus length	56°×42°/3.2mm
IFOV	3.75mrad
Pixelspacing	12μm
Frame rate	25Hz
Focusing mode	Manualfocus
NETD	≤50mK@25℃F#1.0
Wavelengthcoverage	8~14μm
Emissivity	Adjustablefrom 0.01 to 1.0

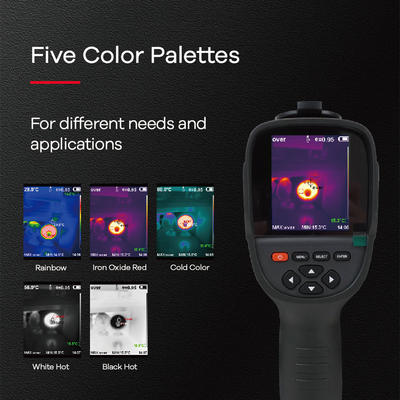

Colorpalette	Rainbow,iron oxide red,cold color,white hot,black hot
WIFI	Support

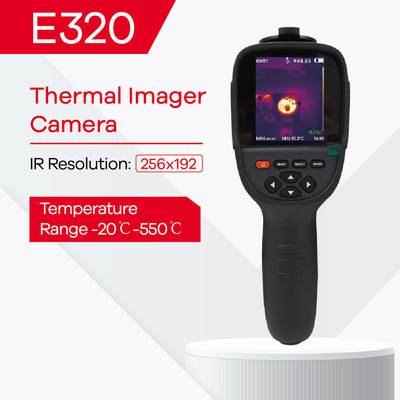

Measuring range	-20℃~550℃(-4°F~1022°F)
Accuracy	±3%
Setting	Unit、Language、Date、Time、Information
Language	Chinese、English、German、Italian
Storage capacity	Built-in 4G eMMC
File format	JPG
Powerinterface	Micro USB 2.0

Products Description

Wide FOV The E320 also features a wide 56° field of view (FOV), allowing users to easily capture more objects within the frame. This expansive FOV enhances the efficiency of thermal inspections by covering larger areas without the need to adjust the focal length, providing a more convenient and streamlined user experience.

Wide Measurement Range & Accuracy The E320 features a wide temperature measurement range of -20℃ to +550℃, making it suitable for a broad spectrum of applications. It can measure temperatures with an accuracy of ±2℃, ensuring precise temperature readings. The high-precision infrared sensor of the E310 boasts a NETD (Noise Equivalent Temperature Difference) of less than 50mK, a measurement accuracy of 0.1 degrees, and an error margin of less than 2%. These specifications guarantee the utmost accuracy in thermal readings, allowing users to trust the reliability of their measurements in critical applications.

Built-in Fill LED Light The E320 is equipped with a built-in LED light, enabling users to record thermal readings without the need for an additional light source. This feature ensures that the target area is well-illuminated, improving visibility and accuracy in various lighting conditions, and enhancing the overall user experience.

Built to Last The E320 is designed with durability in mind, featuring an IP66 rating for protection against water and dust. Additionally, it is built to withstand drops from up to 2 meters, allowing you to use the device with confidence and peace of mind in various challenging environments. This robust construction ensures the E310 remains reliable and functional, even under tough conditions.
